Introduction

Purpose

Through this page, I hope to guide you, the reader, through all the stages of the design and development of the Wonderland Engine. By doing this, I hope to help you better understand the engine at a higher level, as well as some the background behind the engine. Hopefully, you will find this useful in determining whether the Wonderland Engine is right for your group or not, and that it will serve future developers and administrators in understanding some basic concepts behind the engine.

If you find any of the design descriptions confusing, I have included some UML diagrams at the bottom of the page. My hope is that these diagrams will help bring a greater understanding to the design itself.

Background

Before any code was actually written, and before I had any idea that I would be writing a scoring engine, I had started participating in the first teams that my university, the University of Washington Bothell Campus, had sent to the Pacific Rim Collegiate Cyber Defense Competition. While competing during the 2012 Competition, my team had done a pretty reasonable move and blocked any incoming requests from outside our network from reaching the database, domain, and intranet systems. For most systems, this is a very reasonable layout, but unfortunately the database wasn’t written to accommodate this.

The database that was in use up until that competition was hard coded to use the public IPs of each system it was checking the uptime on. All these systems were ones that it was not showing uptime for, even though technically, they were up. As I learned later while designing this scoring engine, the paths were hard coded, and in fact it took a significant amount of effort on the competition organizer’s part to set it up for new competitions such as the smaller ones that my team started to participate in during the summer and fall of 2012.

This wasn’t the only problem, however. The database didn’t have any concept of ‘timed’ checks (what I call inject checks). This meant that judges had to receive paper instructions on how to run scripts installed on each competition machine and interpret the output themselves. It also didn’t have any concept of checks which could subtract points for attackers successfully being able to break in to the systems that teams are supposed to protect. It didn’t even support IPv6, which will become very important in the next few years.

This is why I decided that, for my Cooperative Education project that was required for me to graduate from University of Washington Bothell’s CSSE program, I would create a new engine to replace the old one. I worked closely with the people who set up the PRCCDC event every year as well as the aforementioned smaller competitions to design it how they needed it. Throughout the lifecycle of this project, I have learned many new skills in both python and project management that I hope to use in future jobs. I hope to continue working on this in the future.

Engine Design

The Wonderland Engine was created with modularity as the most crucial element of its design. Before even starting on any code, I took a month to create a 50-page design document which described its architecture and each path that the would have, including what was the input for that path and its output. This has been incorporated into this documentation, although some elements of the original design were changed along the span of developing the project.

One of the first design decisions I made was that the engine would utilize the web using a REST-based architecture. My reasoning for this was that it would need to be accessed across a large variety of systems, including Linux, Windows, and eventually even Mac. It would be a pain for the system administrator to have to set up a client on each workstation in order to allow teams access to the scoring engine, so the next best setup was using a web browser.

Another was that this would be utilizing a multilayer master-worker model in order to run the checks that score the competition. This would be done from the server itself, and wouldn’t require any software to be installed on the client. The only requirement would be that the server running the scoring engine would have both a public IP on the competition environment, as well as a private IP for each team’s network. By utilizing this private IP, the engine would be able to access the various team machines while allowing teams to maintain good security practices.

Very early on, the scoring server was separated out into two different modules. These were the scoring daemon (aka White Rabbit) and the REST server (aka Cheshire Cat that gave access to the data that the scoring server generated. Unfortunately, python servers are started with several processes, which forced me to consider options for communication outside of traditional pipes. I considered using sockets, but decided that wouldn’t allow for the flexibility that I needed. Eventually, I ended up using Redis’s pub sub feature. By utilizing this, the REST interface did not care about what daemon, if any, it communicated with, and the daemon didn’t care about what clients it was getting its commands from. This allows for a more modular approach to detecting changes across databases.

From these design decisions emerged the the three base components included with the engine, Cheshire Cat, White Rabbit, and Doorknob. White Rabbit, as with the character from the books, is mostly concerned with making sure that all the checks run in a timely manner. Cheshire Cat just lazily takes the REST calls and converts them into data to be submitted to or returned from the database, and will occasionally notify White Rabbit that data it is concerned about in the database has changed through Redis. Doorknob is the wrapper around the database, which is where all the data for the scoring engine lives, and so, again like the character from the book, can be considered the portal to Wonderland itself. Details on each are available below.

Doorknob

Doorknob was one of the first pieces of code to actually be created because, at the time, I did not know whether I’d be using a SQL-based architecture such as MySQL or PostgreSQL, or a NoSQL-based one with MongoDB. In addition, I knew that not everyone would like to have to install MongoDB just for this engine, so I decided that the database should be able to be swapped out for another if so desired. Due to these desires, Doorknob came into existence.

One design approach I considered that would have worked great for MongoDB was that I use an ORM model and encapsulate each type of object into a class utilizing metaclasses for transforming them into database-level objects. Quite a few good frameworks exist already for MongoDB, MySQL, and PostgreSQL, but none allow for either of those to be used. In addition to the fact that ORMs can be rather tricky when it comes to handling data that requires more than one table in traditional SQL databases (thinking of things like key-value stores or arrays), one that supported both SQL and NoSQL would only be able to reliably support a few common object types such as ints and strings. This would have spun out of control quickly, and would have made it harder for developers to create new wrappers for their preferred database.

Instead, I decided to create an abstract class that contained an abstract method for each action either White Rabbit or Cheshire Cat would need. These would have the arguments that they needed and be able to interpret them accordingly depending on the database in use. If you wanted to support a different database, all you’d have to do is inherit from the DBWrapper class and implement all the abstract methods that it creates. With this technique, what the DBWrapper does and doesn’t support can be adequately specified and it would require minimal conceptual confusion from the developer.

However, this approach does have its downsides too. In terms of amount of code, this approach generates a lot more, with DBWrapper containing 88 methods at the time of this writing. However, many of those do similar things but with different sets of data (such as users vs machines). This may have been able to be handled in a more object-oriented way, with different classes that inherit from a common class, for example, but allowing that common class to be dynamic and deciding how it would be abstract enough to work across different databases would have presented similar problems to an ORM-style model. Due to these conceptual downsides, I took the KISS (Keep It Super Simple) approach and used one method per action per set of data.

Cheshire Cat

Cheshire Cat was created as an easy way to access the data across the many machines that would inevitably be deployed for Cyber Defense Competitions. By using a REST interface for the data, no special software would have to be deployed to any machines in order to communicate with the scoring engine. A web frontend could be created to make AJAX calls to the scoring engine, which would then work in any standard web browser or via the command line when using tools like curl. Plus, by using a REST interface, the scoring engine can be located on a separate machine from the actual scoring process, allowing for more control over the scoring engine’s environment.

The design of Cheshire Cat is fairly simple. It submits and queries data through Doorknob to the administrator’s database of choice. That data is then returned to the user in JSON, with dates being represented by a Unix timestamp. It does provide a basic authentication system and authorization system in order to manage access to the interfaces that it provides, but it does not provide security for this data. If it is run over standard HTTP, the user tokens could easily be sniffed, so if security is a concern (such as with large competitions), then you should enable HTTPS in your web serving software (aka, Apache, Nginx, Lighttpd, or Microsoft IIS).

The interfaces for Cheshire Cat are all written as plugins, defined as modules within the blueprints folder. Any routes defined within a module in this folder will beautomatically loaded when Cheshire Cat is started up, making it easy to add and test new routes. By using this, no new routes have to be defined anywhere else, and the information about each route is kept with that route. Check the Cheshire docs if you would like to create new interfaces for Cheshire Cat.

Due to its simplicity, this is all that can be said about the design of Cheshire Cat. If you are wanting to use it with your application, I would suggest checking its docs for all the REST interfaces.

White Rabbit

White Rabbit is the work horse behind the scoring engine, in that it manages all the checks that are being run for each team. It is similar to Cron, the job scheduler for Unix-like operating systems, and allows for you to schedule checks to be run in certain intervals or at a specific time. Checks can be one of four types: Service, Attacker, Inject, and Manual. Each of these types have different properties and intended uses in scoring a competition.

Service checks are checks that will run for all teams at periodic intervals. These checks are meant to be used for checking whether certain services remain up throughout the competition. The scoring engine will add the number of points returned by the check to the overall score.

Attacker checks are similar to Service checks, but will run for only a certain team at periodic intervals. The intention is that the attacker, after finding a security hole for a specific team, will write a test for that security hole, and then submit that check to the administrator of the scoring engine. The scoring engine will then run the check and deduct the appropriate number of points from the user.

Inject checks are checks that are intended to be run at a certain time in order to judge the successful completion of a business task. This may be as simple as whether a team removed some infected files from the system or whether they had set up a new service. These are only scored once, unlike the Service and Attacker checks.

Manual checks are checks that have to be added manually to the database, and are not handled explicitly by White Rabbit, but are still useful to mention here. These checks are intended for items that can not be easily scored in an automated fashion, such as presentations or reports. These are scored immediately upon being submitted into the engine, and are available to cover any types of checks not covered by the other three checks.

UML Diagrams

I have included these UML diagrams in order to facilitate the understanding of the designs mentioned above. Included with each diagram is a description describing each step in the diagram. Hopefully someone will find them helpful in understanding the engine.

Engine Architecture

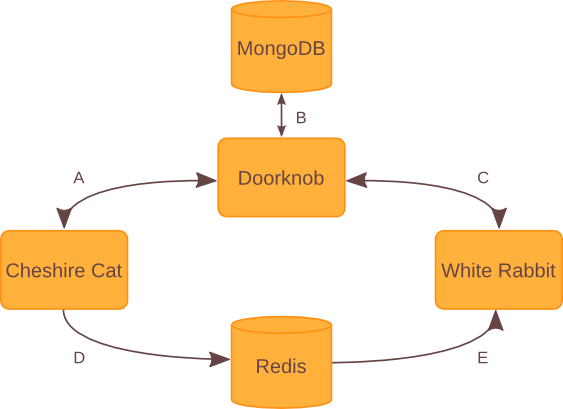

This image further emphasizes the three-pronged approach of the Wonderland Engine, emphasizing the roles that each component takes and the communication channels for each component. These communication channels are lettered, and will be explained in the points that follow.

A: Cheshire Cat pulls most of its information from Doorknob, the database wrapper. It may do some processing on the data before sending it back to the client, such as serializing some objects that are not normally JSON serializable (such as datetimes), but usually the data is as you would see it if you looked in the database. In addition, it does some data validation that would not be appropriate for the wrapper to do, such as checking that a role is in a set of defined roles for users.

B: Doorknob does most of the heavy lifting by providing a common interface among databases in order to ease communication between both White Rabbit and Cheshire Cat and the database itself. One thing to note is that Doorknob does not have to communicate with MongoDB, as is pictured above. A wrapper for MongoDB is included by default, but any database with a wrapper that implements Doorknob’s DBWrapper abstract class may be used instead. If you would like to use another database, feel free to write a new wrapper class and submit a patch!

C: White Rabbit communicates with the database in order to store a list of loaded check modules and classes, and to get the list of checks to use for its checking processes. It also stores the score after running each check in the database, and recalculates the scores after each change.

D: If certain portions of the database are changed that affect checking (such as the list of active checks in the database), Cheshire Cat will publish a command to a Redis pub sub channel specified in the Engine config file. This allows for any program listening on that channel to receive and interpret any sent commands as they wish, regardless of programming language or implementation.

E: White Rabbit listens to the Redis pub sub channel specified in the Engine’s config file for commands that signal changes it should enact on. These changes could include the list of checks being changed, or whether to start or stop checking. If you would like more information on this, please see the documentation for Doorknob.

Unfortunately, due to time constraints, D and E (the communication through Redis’s pub sub channels) are hard coded into both Cheshire Cat and White Rabbit. I would like to abstract this out too, so that you could use other pub sub providers (such as ZeroMQ) without much hassle. If you would like this, feel free to file a new issue on the Github tracker and propose a design!
